Industry-leading sectional steel water-storage tanks for large-scale,
demanding applications.
Engineered from premium ZINCALUME® steel, lined with our durable AquaGuard potable-water liner, and designed to deliver clean, secure, long-life storage of up to 5 million litres.
Ideal for municipal, commercial, industrial, farm, eco-village and regenerative-project uses.
Request a full specification pack
Why Dura Tank?
You need a tank system that can stand up to harsh-environment conditions, deliver high-volume storage, be modular and serviceable, and guarantee water-quality and structural integrity. The Dura Tank delivers on these demands by combining:
- A robust shell of ZINCALUME® steel – alloy-coated for enhanced corrosion performance.
- A time-tested AquaGuard liner system, fully potable-water friendly and tailored for long-term installation.
- Modular, bolted construction allowing rapid on-site assembly, relocatability, scalable diameters & heights (up to 5 million litres).
- Local manufacturing and support via Aquadam’s network in South Africa + Africa, ensuring strong After-Sales, spare-part availability and lifecycle value.
Technical Specification Highlights
Structure: ZINCALUME® Steel Shell
Alloy coating composition: approx. 55% aluminium, 43.5% zinc and 1.5% silicon.
Minimum coating mass (typical): ~150 g/m²
(AZ150) and in heavier duty versions up to AZ200+ in corrosive environments.
Grade / yield strength examples: G550 (550 MPa)
or G300 (300 MPa) depending on product.
Base metal thicknesses: e.g., 0.42 mm, 0.48 mm or 0.60 mm depending on product design
Excellent forming capability, cyclone/high-wind performance, and durability well beyond standard galvanised steel. For example some tests show up to 4× life compared to Z275 galvanised steel.
Best practice installation:
Ensure cut-edges,
welds and penetrations are properly sealed/correct fasteners used.

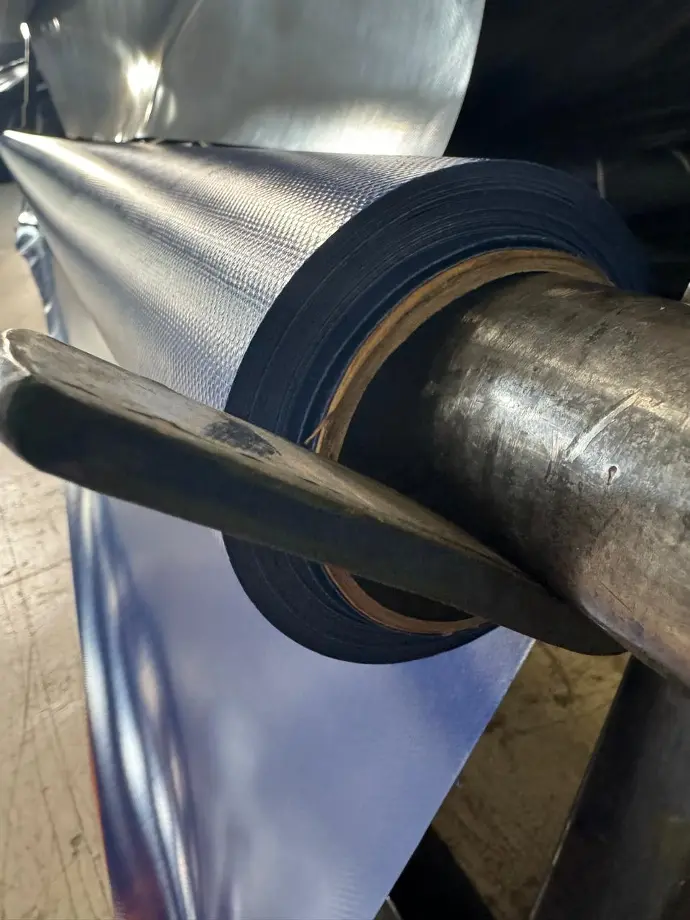

Liner: AquaGuard (PVC Liner)
- Designed
for potable water contact: fully compliant with AS/NZS 4020:2005 for
drinking water contact.
- Base
fabric: 100% polyester plain weave scrim, manufactured to SANS 79
standard.
- Available
in heavier “720 g” (≈600 micron) versions for large tank installations.
- Weld-fabricated
seams (heat-welded), robust for long-term service life inside metal
shells.
- Prevents water-to-steel contact, thereby protecting the shell from internal corrosion and safeguarding water quality.
Exceptional Quality Design Codes & Standards
Capacity, Dimensions & Construction
- Available in a full range of diameters and heights, modular sectional format, up to 5 million litres for maximum scale projects.
- Flat-sheet panel construction (rather than corrugated or welded shell) enables efficient transport, on-site assembly and reclamping if relocation is required.
- Designed for ease of maintenance, inspection and future expansion.
Additional Features
Roof options available
to cap tanks, protect water from debris and reduce evaporation. (where required)
Foundations
Reinforced concrete ring-beam or equivalent base design as per site wind, seismic, soil conditions.
(Detailed engineer drawings available upon request.)

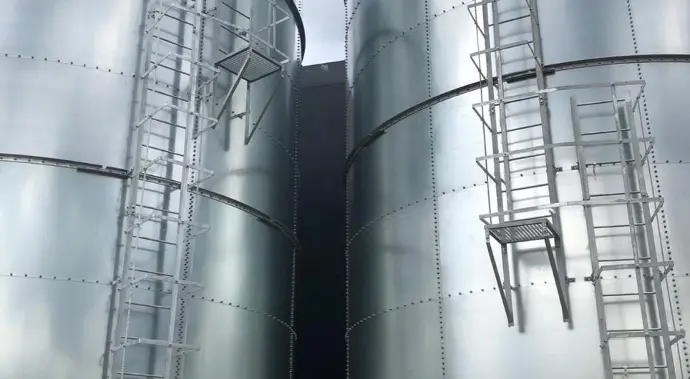

Access

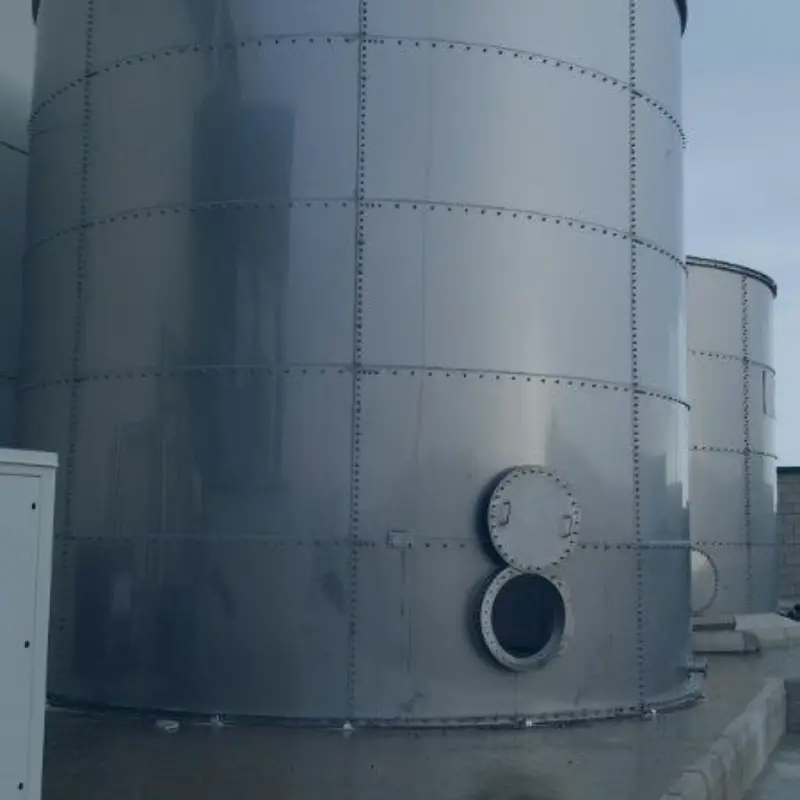

Manholes, internal ladders, ventilation, and bird/rodent proofing optional.
Modular steel panel
Modular steel panel system allows relocation of tank, reduction or increase in capacity, thereby enhancing lifecycle asset flexibility.
Benefits at a Glance
Exceptional durability & corrosion resistance
Thanks to the ZINCALUME® shell, you’re investing in a long-life asset.
Water-safe internal environment
The AquaGuard liner ensures the water stays separated from steel, keeping water potable and protecting the structure.
Modular, relocatable design
Ideal for projects that evolve, relocate or expand.
Low maintenance, minimal downtime
Designed for ease of access, inspection and servicing.
Tailored to harsh environments
From remote farms to municipal reservoirs, the system can be engineered for wind, seismic, elevated sites.
Sustainability & lifecycle value
Steel is highly recyclable, shells and liners can be refurbished/re-lined as necessary, enhancing long-term asset value.
Typical Applications
- Municipal & community water storage (including rural village systems, co-operatives, eco-villages)
- Commercial & industrial process water storage
- Agricultural irrigation / farm storage (large-scale)
- Regenerative-farm systems (combined rainfall / runoff collection + potable-grade storage)
- Emergency resiliency & fire-suppression reservoirs
- Earth-dam abatement, remote-stand installations, mining or infrastructure support
Ordering & Customisation
Choose capacity
Choose your required capacity (diameter × height), shell thickness, liner specification and optional extras (roof, access, instrumentation).
Clour
Available in plain mill finish or optionally colour-coated panels (colour-coating available on request).
Delivery
Delivery, on-site assembly, training and maintenance services provided by Aquadam.
Site preparation
Dawings, foundation spec, installation logic and after-sales support available.
Request a quote
Request a quote today — contact our sales team at to discuss your project, capacity needs, site co [insert contact email/phone] itions and budget.
Lead-times
Lead-times vary depending on capacity & region; we recommend early engagement to align fabrication schedule, foundations and logistics
Warranty & Assurance
Shell steel
Genuine ZINCALUME® steel (by BlueScope/partner) — specified coating class, yield strength & corrosion performance.
Documentation
Aquadam provides documentation, drawings, specification pack and erection manual with each supply.
Liner
AquaGuard potable-water liner, AS/NZS 4020 certified.
Standard warranty
Standard warranty applies — for full warranty terms please contact Aquadam.
Why Choose Aquadam & the Dura Tank?
At Aquadam we deliver more than just tanks — we deliver engineered water-storage solutions tailored to the modern demands of growth, sustainability, resilience and localisation. The Dura Tank is the next evolution of our sectional steel tank systems, designed with:
- African operating conditions in mind (heat, corrosion, logistics, serviceability)
- Scalable modular architecture, ideal for your cooperative, farm, eco-village or industrial application
- Integrated design thinking — from material selection to liner interface to tank lifecycle
- Our trusted track-record – Aquadam has supplied sectional steel tanks across South Africa, Africa and abroad, and we’ve refined our systems in real-world use.
Are you planning a large-scale water storage project? Let’s talk about how the Dura Tank can deliver the performance, durability and value your operation needs. Contact us today to request a full specification pack, CAD drawings, installation manual, foundation design, and a tailored quote.
NOTE:
This copy assumes the use of genuine ZINCALUME® steel and Aquadam’s AquaGuard liner as described. Please check any additional proprietary or project-specific material specifications (e.g., local coating classes, liner thicknesses, accessories) and update accordingly.

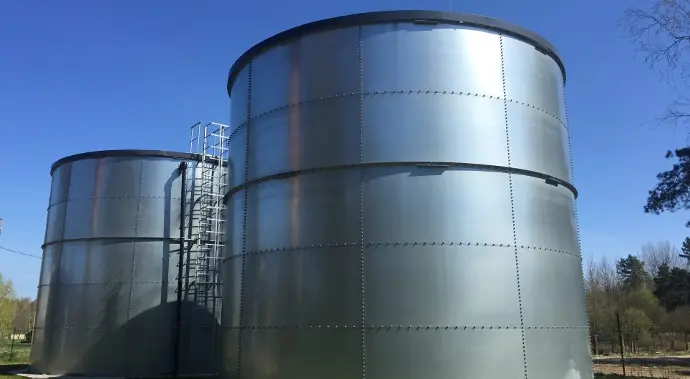

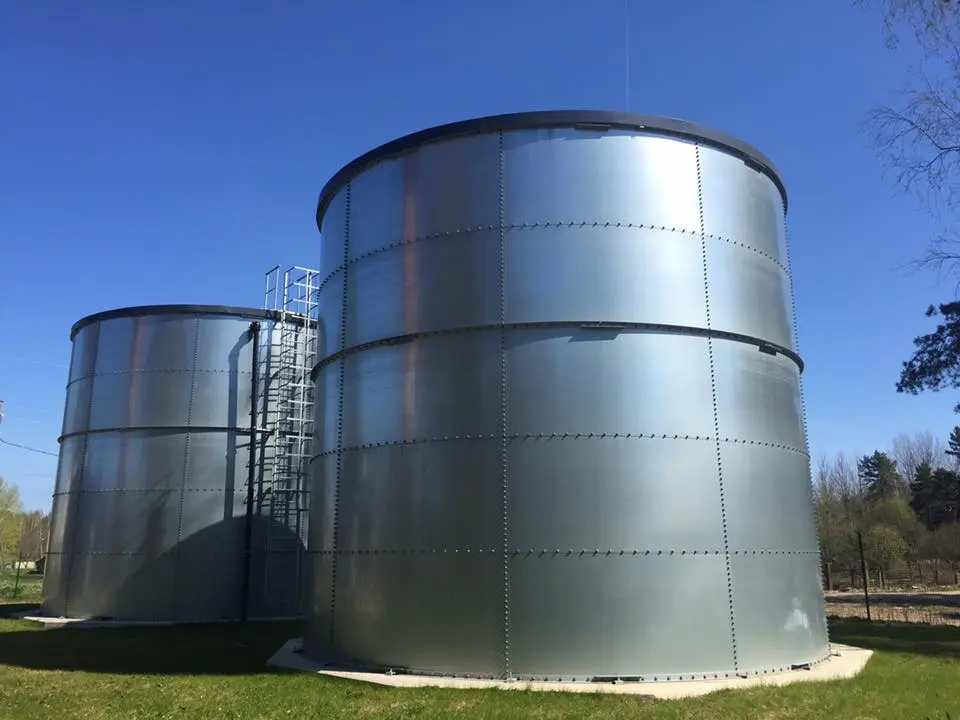

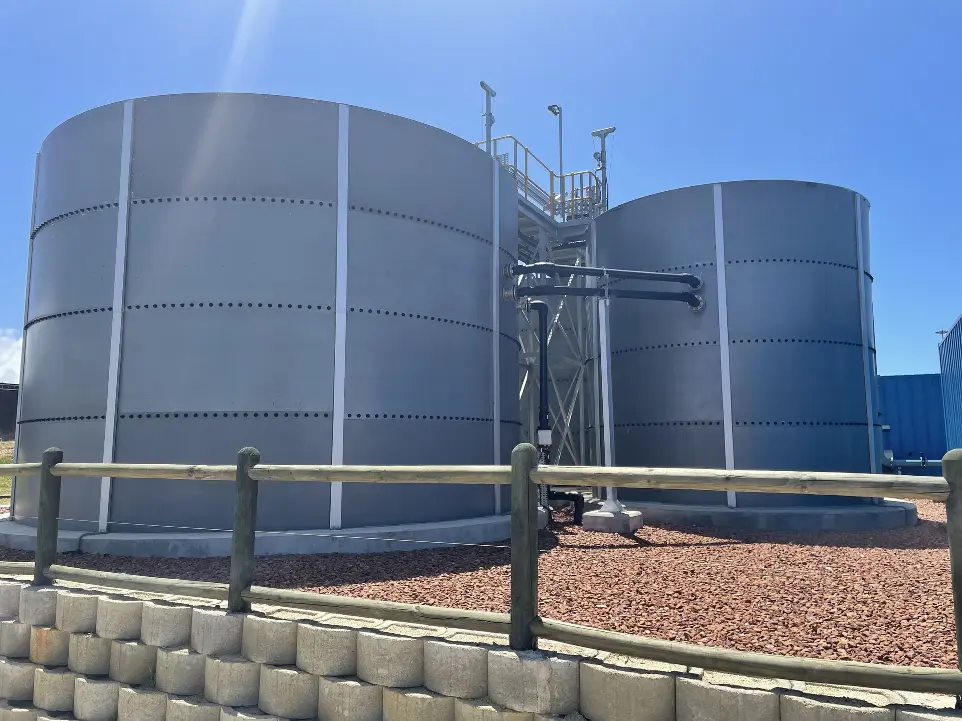

Photo Gallery
